Settings

The Settings view allows you to configure general and advanced options such as language, synchronization, draw animation, and backup. You can also manage API environment, scoring rules, and local database settings to ensure smooth competition operation.

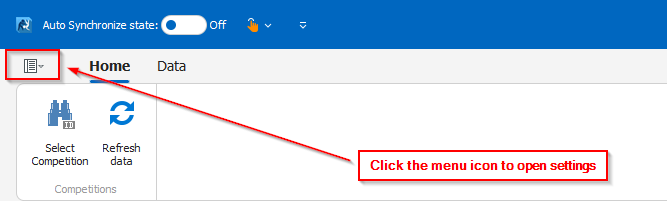

Click the menu icon.

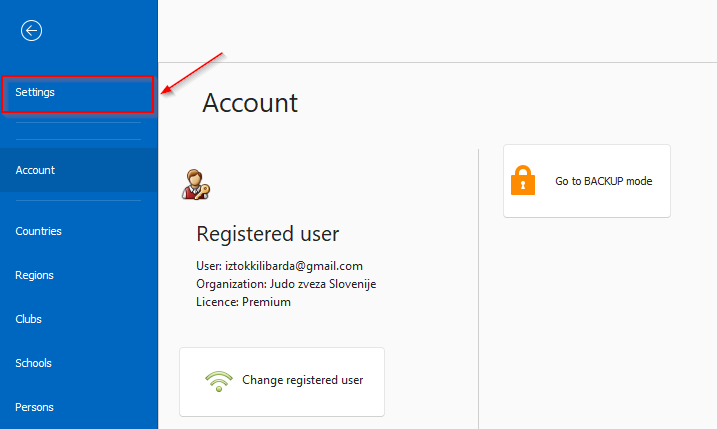

Then select the "Settings" button to open the Settings view. There you can manage global options that affect how the JudoManager Desktop application works.



In Settings view, you can modify global application settings:


Language
You can choose between different application languages, which also affect the printed output. The application is currently available in the following languages: English, Slovenian, German, Croatian, and Azerbaijani. The list of supported languages is continuously expanding.

Draw animation

Enable or disable the use of the Draw Animation module. You can also configure the communication port for the animation output.

Advanced Settings

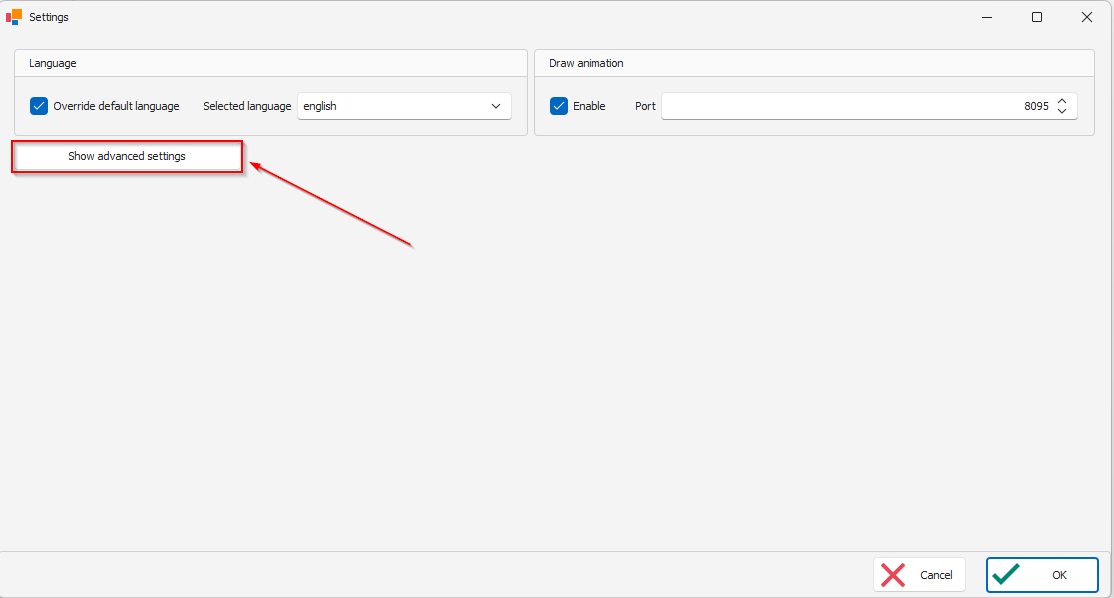

Select "Show advanced settings" to reveal additional settings. Those setting let you fine-tune some advanced aspects of JudoManager Desktop application.

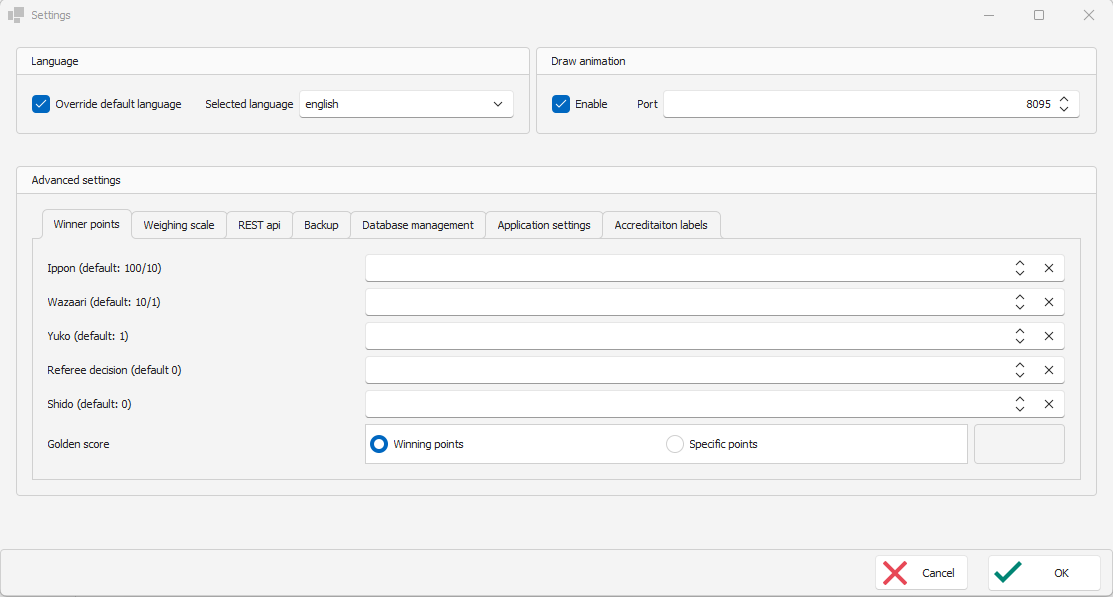

Winner points

The default point values in the application are: Ippon (100), Waza-ari (10), and Yuko (1). You can freely adjust the scoring values for Ippon, Waza-ari, Yuko, Referee Decision, and Shido.

Weighing scale

If you use weighing scale with the server computer (computer running JudoManager Desktop application), set communication port and baud rate.

REST api

Changes the environment for API connection. For national competitions always use JudoManager setting. Judobase setting is intended for EJU and IJF competitions.
Warning: when changing the environment of rest API, it is mandatory to discard (clean) local database to keep data integrity. Failure to do so may result in unexpected behavior.

Backup

Choose the backup option of the local database. You can choose between off, file system (local disk) and FTP (requires available FTP account). Local database will be saved periodically. You can read more about Automatic data backup here.

Database management

You can clean (backup and delete) the local database. This option allows you to clean up resources in case of troubles or changing the environment.
Warning: please make sure you have all local changes pushed to cloud database to avoid data loss.
